YUKOSYOKAI CO., LTD.｜Gore® Hyper-Shee® Gasket

Hyper-Sheet Gasket is a sheet-type sealing material with flexible and strong fiber structure, made from expanded PTFE which has various benefits and a wide range of applications.
Compared to conventional PTFE sheet, Goretex(R) Hyper sheet, extremely soft, can be easily cut with a cutter knife.
It conforms to rough surfaces or real-world flange conditions, yet compressoin into a very tough gasket that makes a tight, long lasting seal.

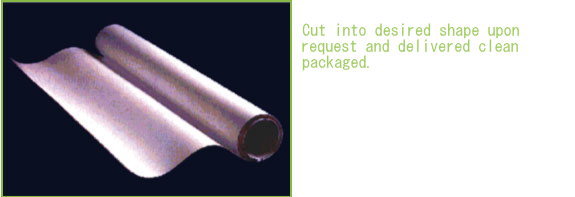

The sheet is available to fit flanges of any size (maximum:1,500mm×3,000mm) and configuration.
Made from 100% PTFE; Excellent chemical and heat resistance, and no pollution. It performs reliable sealing under highly corrosive environments or under the conditions which need to maintain high level of cleanliness like the food industry.

■Technical Data
●Chemical Resistance　pH 0〜14　●High Temperature Resistance　-240℃〜＋315℃
●Operating Pressure　Vacuum〜210kgf/cm2=19.6MPa

■Specification

No.	Thick	Size
SG05X	0.5mm	1500mm×1500mm
SG10X	1.0mm	1500mm×1500mm
SG15X	1.5mm	1500mm×1500mm
SG20X	2.0mm	1500mm×1500mm
SG20Z	2.0mm	1500mm×3000mm

No.	Thick	Size
SG30X	3.0mm	1500mm×1500mm
SG30Z	3.0mm	1500mm×3000mm
SG40X	4.0mm	1500mm×1500mm
SG50X	5.0mm	1500mm×1500mm
SG65X	6.5mm	1500mm×1500mm

※For other sizes and processing, please contact us.
※Custom-design products are on a production by order basis.
※High density products and annealing services are available.

Highyl flexible material conforms to irregular surfaces.
Performs perfect sealing effect at 1/2~1/3 loads of conventional PTFE sheet.

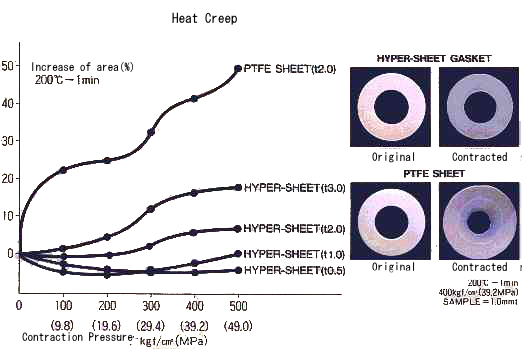

Increased resistance to creep and cold flow.
High tinsile strength;twice higher than conventional PTFE sheet.

Made from 100% PTFE, it resists to chemicals (e.g.. acid, alkali, oxidation, reducing agent, organic solvent)
Temperature range from －240℃ to ＋315℃
※Cannot be used for high temperature and high pressure fluorine gas.

■Chemical Stability

Chemical Substance	℃
abietic acid	182
acetic acid	bp
acetic anhydride	150
acetone	bp
acetophenone	bp
liquid ammonia	26
aniline	bp
benzonitrile	bp
benzoyl chloride	bp
benzyl alcohol	bp
bromine	94

Chemical Substance	℃
butyl acetate	127
carbon disulfide	46
cetane	52
chlorine	94

chlorisulfonic acid	94
cresol	bp
cyclohexane	150
cyclohexanone	bp
dibutyl phthalate	262
dibutyl sebacate	bp
dimethylformamide	150

Chemical Substance	℃
dimethylhydrazine	bp
dioxane	bp
ethyl acetate	bp
ethyl alcohol	204
ethyl hexanoate	bp
ethylene dibromide	100
ethylene glycol	204
hexachloroethane	bp
diethyl ether	bp
adipic acid diisobutyl ester	bp
hydrazine	bp
chlorine 0～100%	bp

Chemical Substance	℃
hydrofluoric acid 0〜100%	bp
hydrogen peroxide 90%	66
methyl ethyl ketone	bp

nitric acid 0〜100%	bp
nitro benzene	bp
nitrogen tetroxide	bp
ozone	26
perchloroethylene	bp

phenol	bp
phosphoric acid 0〜100%	bp

Chemical Substance	℃
phosphoric acid chloride	94
pinene	bp
piperidine	105
potassium hydroxide 60%	bp
potassium permanganate 5%	bp
pyridine	bp
soap	bp
gasoline	94
sodium hydroxide0〜100%	bp
sodium hypochlorite 20%	bp
sodium peroxide	bp
stannous chloride	246

Chemical Substance	℃
sulfuric acid 0〜100%	262
tetrabromoethane	bp
trichloroacetic acid	bp
trichloroethylene	bp
tricresyl phosphate	150
xylene	139
chloronaphthalene	bp
chronitorobenzene	bp
formic acid	101
furan	bp

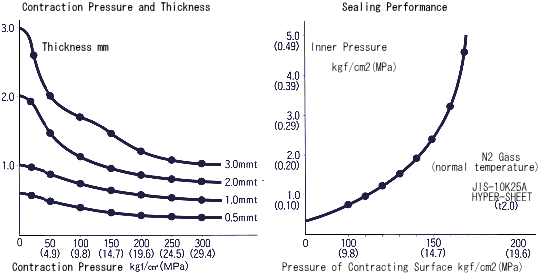

■Property

Chemicals	Temperature ℃
Gasket Coefficient (ｍ)	2.5
Minimum Contraction Pressure∞ Gas	200kgf/cm2 （=19.6MPa）
Minimum Contraction Pressure∞ Water	35.7kgf/cm2 （=3.5MPa）
Spesific Gravity	0.6
Thermal Conductivity	0.03kcal/h・m・℃ （=0.04W/m‐。C）
Specific Heat	23kcal/kg・℃ （=966J/kg‐。C）
Melting Point	327。C
Oxygen Index	94.5

Chemicals	Temperature ℃
Ignition Point （Oxigen）	512℃
Ignition Point （Air）	575℃
Coefficient of Friction	0.2
Tensile Strength	5kgf/mm （4.7N/mm2）
Conpressibility 25℃ 100℃ 200℃	JIS-R3453 56.8% 61.7% 88.1%
Recovery 25℃ 100℃ 200℃	JIS-R3453 17.9% 20.4% 26.I%
Stress relaxation Ratio	135% ASTM-F38
